Serial/Parallel Card

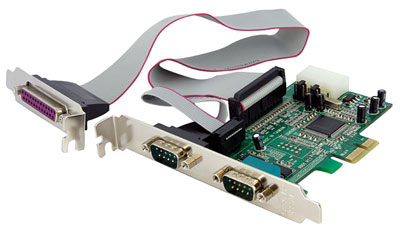

PCI Express Serial Parallel Ports Card

  • Add 2 RS-232 serial ports and 1 parallel port to your standard or low-profile desktop computer through a PCI Express expansion slot
  • Excellent compatibility with Windows/Linux/Mac O/Ss

Overview
ThePCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.

Compatible with a broad range of operating systems including Windows 2000/XP/2003/Vista/Windows 7/8/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.

Advantages
  • Standard and low profile bracket included ensuring easy installation into almost any system
  • Native single-chip, single lane PCI Express offers increased speed and reduced CPU load by up to 48%
  • All three ports share only one IRQ, minimizing system resources required for the card
Features
  • Two high speed RS-232 serial ports with data transfer rate up to 460.8 Kbps
  • One parallel port with data transfer rate up to 1.5 Mbps
  • Compliant with PCI Express base specifications revision 1.0a
  • 128-byte deep FIFO per transmitter and receiver
  • Configurable in 5V, 12V, and RI (non-powered) modes.
  • Selectable power output on pin 9 for the serial port
  • Native single-chip, single lane PCI Express
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR
  • Automated in-band flow control using programmable Xon/Xoff in both directions
Applications
  • Self service automated machines and kiosks to control serial devices such as scales, touch screens, magnetic card readers, bar code scanners, receipt printers, label printers
  • POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
  • Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pin pads, pen pads
  • Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touch screen LCD's, camera control, etc.
  • Used to control multiple surveillance / security cameras in a parking structure, office building, etc.

Backed by a Beagle Software 1-year warranty and technical support.

Price

$54.95
PCIE2S1P
System Requirements
  • PCI Express Bus - PCIe-equipped PC with one available PCI Express X1 slot
  • Windows 2000/XP/2003/Vista/Windows 7/8/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4
