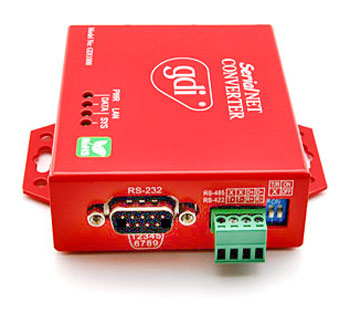

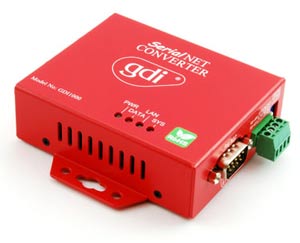

| GDI 1000 Series
1-port Ethernet to Serial Adapter
|
|
|
|
|
|
The
GDI1000 TCP/IP converter is designed to make your serial devices
Internet ready instantly. The GDI1000 TCP/IP
converter makes the ideal choice for connecting your RS-232 or
RS-422/485 serial devices—such as PLCs, meters, and sensors—to
an IP-based Ethernet LAN, making it possible for your software
to access serial devices anywhere and anytime over a local LAN
or the Internet.
These converters ensure the compatibility of network
software that uses a standard network API (Winsock or BSD
Sockets) by providing TCP Server Mode, TCP Client Mode, and UDP
Mode. The included Virtual COM driver, software that creates a
virtual
COM port can be set up to work over a TCP/IP network in no time.
This feature preserves your software and hardware investment and
lets you enjoy the benefits of networking your serial devices
instantly.
The GDI converters support manual configuration via a convenient web browser console.
Protocols supported include: TCP, IP,
UDP, HTTP, DHCP, ICMP, and ARP.
Features:
- Data Conversion between RS-232/422/485 and Ethernet
Convert serial device (RS-232, RS-422, RS-485) data/signal into
the TCP/IP package data/signal and send them out with the
Ethernet Data Stream or convert the TCP/IP package data/signal
into serial device data/signal.
- Dynamic IP Configuration
Supports DHCP client mode, simplifying network address
configuration and management.
- Dual LAN Speed
Support 10/100 Mbps Ethernet, auto-detected.
- Server / Client Dual Modes
The
8051 Series can be configured as network server or network
client. In the client mode, it can be installed in network which
is protected by NAT router or firewall, without the need of a
real IP address.
- Web-based Setup
Parameters setup are based on HTTP protocol by using standard
browsers (IE and Firefox). No special software is
required.
- Built-in Security Control
Protected by setup password to prevent intruders.
- Firmware Remote Update
Firmware can be updated directly via Ethernet network to keep up
with latest network standards.
|
|
| |
Real
COM Drivers for Existing Software
Thanks to GDI's Real COM
drivers, software that works with COM ports
can now work on a TCP/IP network in no time.
This excellent feature preserves your software
investment and lets you enjoy the benefits of
networking your serial devices instantly.
Easy installation and configuration
GDI1000 serial device
server supports automatic IP configuration
protocols (DHCP) and manual configuration through the web console.
This ensures a quick and effective installation.
Firmware is updateable over the LAN. |
|
|
|
| Specifications |
|
|
|
|
|
|
|
|
Built-in 1.5 KV magnetic
isolation |
|
|
|
|
| |
|
|
|
|
|
1 RS-232 port, 1
RS-422/485 port |
|
|
|
|
|
Rx , Tx , GND , RTS , CTS , DTR , DSR ,
DCD |
|
|
|
RS-422
Signals |
Rx+ , Rx- , Tx+ , Tx- |
|
RS-485
Signals |
Data+ , Data- |
|
RS-422/RS-485 Terminal Resistor |
yes |
|
|
|
15 KV ESD for all signals |
|
|
|
|
| |
| Serial Communication
Parameters |
|
|
|
| |
|
|
|
|
|
ARP, IP, ICMP, UDP, TCP,
HTTP, DHCP |
|
|
|
|
|
Administrator Suite
for Windows 2000/XP/2003 |
|
|
|
|
|
Windows
2000/XP/2003/XP COM driver |
|
|
|
|
|
Web
console, RS-232 Console or Windows utility |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
1 KV Burst (EFT),
EN61000-4-4
0.5 KV Surge, EN61000-4-5 |
|
|
|
|
| |
|
|
|
|
|
|
Operating Temperature |
0°C～500°C = 32°F～122°F |
|
Storage Temperature |
-10°C～70°C = 14°F～158°F |
|
Dimensions |
85 * 75 * 25 mm = 3.35 * 2.95 * 0.99 in (
W * D * H )
|
|
Weight |
120 gm = 4.2 ounce |
|
RoHS |
Compliant with RoHS |
|
Regulatory Approvals
|
EMC : FCC Class A, CE Class A
|
|
Warranty |
1 year |
|
|
|
|
 |
| |
| |
|
Multi-mode Serial Device
Server
