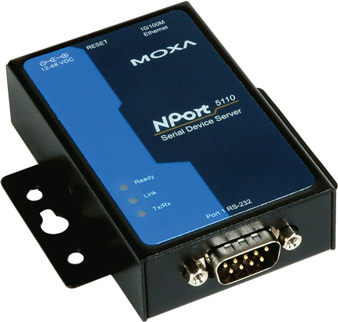

| Moxa NPort 5110 Series
1-port Ethernet to RS-232 Adapter
|
|
|
|
|
|
 |
 Serial Device
Server |
|
Connect RS-232 equipment to Ethernet |
|
Real COM/TTY driver for Windows and Linux |
|
DB-9M serial connector |
|
10/100 RJ-45 Ethernet connection |
Works with
DocuClock,
Star Sync and
Cell Sync
|
| Introduction |
| NPort 5110 serial device
server is designed to make your serial devices Internet
ready instantly for POS and other applications. The compact size
of NPort 5110 device server makes it the ideal choice for
connecting your RS-232 serial device, such as a card reader or
payment terminal, to an IP-based Ethernet LAN, making it
possible for your software to access serial devices located
anywhere on a local LAN or the Internet. |
|
|
|
| Features |
|
|
|
|
Low cost; credit card size |
|
|
|
Real COM/TTY driver for Windows and Linux |
|
|
|
Versatile socket operation modes,
including TCP Server, TCP Client, UDP Server/Client, and
Ethernet Modem |
|
|
|
Pair Connection mode for connecting two
serial devices over a network without a PC |
|
|
|
Easy-to-use Windows Utility for mass
installation |
|
|
|
Built-in 15 KV ESD protection for all
serial signals |
|
|
|
SNMP MIB-II for network management |
|
|
|
Configuration via Web/Telnet/Serial
console |
|
|
| |
Standard
TCP/IP Interface and Versatile Operation Modes
NPort 5110 serial device server
provides TCP Server, TCP Client, UDP
Server/Client, Pair Connection, and Ethernet
Modem, ensuring the compatibility of network
software that uses a standard network API
(Winsock, BSD Sockets).Real
COM/TTY Drivers for Existing Software
Thanks to NPort's Real COM/TTY
drivers, software that works with COM/TTY ports
can now work on a TCP/IP network in no time.
This excellent feature preserves your software
investment and lets you enjoy the benefits of
networking your serial devices instantly.
Easy installation and configuration
NPort 5110 serial device
server supports automatic IP configuration
protocols (DHCP, BootP) and manual configuration through the web console, Telnet
console, serial console, and Utility. All
methods ensure quick and effective installation.
And with Windows Utility (NPort Administrator
Suite), your installation job becomes more
pleasant than ever, since all system parameters
can be stored and copied to other NPort device
servers.
More... |
|
|
|
| Specifications |
|
|
|
|
|
|
|
|
Built-in 1.5 KV magnetic
isolation |
|
|
|
|
| |
|
|
|
|
|
|
|
|
TxD, RxD, RTS, CTS, DTR,
DSR, DCD, GND |
|
|
|
|
|
15 KV ESD for all signals |
|
|
|
|
| |
| Serial Communication
Parameters |
|
|
|
|
None, Even, Odd, Space,
Mark |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
ICMP, IP, TCP, UDP, DHCP,
BootP, Telnet, DNS, SNMP, HTTP, SMTP |
|
|
|
|
|
NPort Administrator Suite
for Windows 95/98/ME/NT/2000/XP/2003 |
|
|
|
|
|
Windows
95/98/ME/NT/2000/XP/2003/XP x64/2003 x64
COM driver, Linux real TTY driver, SCO
Unix,SCO OpenServer 5, UnixWare 7,
UnixWare 2.1.x, SVR4.2, QNX |
|
|
|
|
|
Web /serial/Telnet
console, or Windows utility |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
1 KV Burst (EFT),
EN61000-4-4
0.5 KV Surge, EN61000-4-5 |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
|
0 to 55°C (32 to 131°F),
5 to 95%RH |
|
|
|
|
|
-20 to 85°C (-4 to
185°F), 5 to 95%RH |
|
|
|
|
| |
|
|
|
|
CE: EN55022 Class
A/EN55024
FCC: FCC Part 17 Subpart B, Class A |
|
|
|
|
UL: UL60950-1
TÜV: EN60950-1 |
|
|
|
|
|
|
|
| |
|
